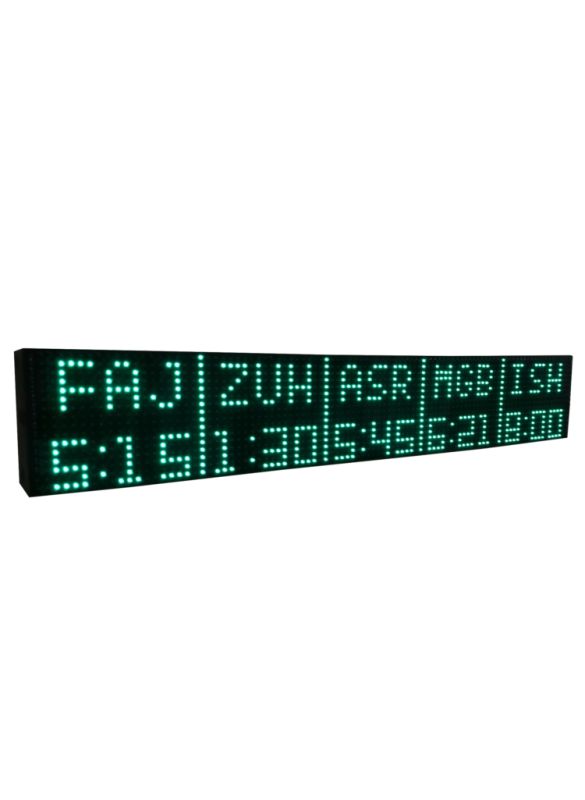

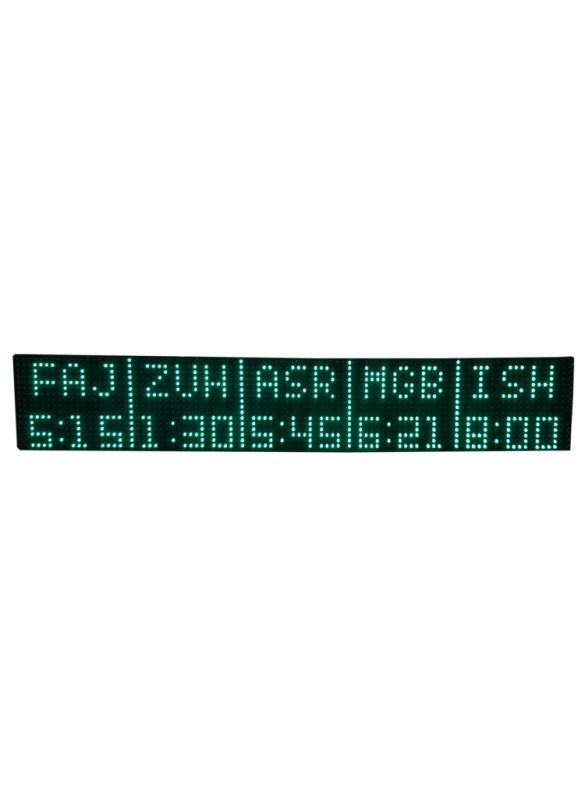

5 Prayer or Azan Times Auxiliary LED Display for Masjids

This is an Add-On Display than can be used separately to only show the 5 prayer times in the Masjid Hall or elsewhere in the activity room or halls. This works independently and can be also be used in the Main Praying Area to only show the Prayer times without any additional data.

Shows either Azan or Jamath/Iqamah times only. Recommended to use the Standard Smart LED Display with this Product or can even be clubbed with any other classic Analog/Digital Clock.

Iqamah/Jamath Prayer Times can be changed simply by connecting a Smartdevice (Smartphone/PC/Tablet) to this Display’s inbuilt Hotspot WiFi and opening the Android App or navigating to a webpage on other devices. This does not require any WiFi Router or Internet Connection in the Masjid as the Display itself becomes a WiFi Hotspot and can be directly connected to from Phones for updating prayer times.

• Show all Jamath Times including Jumuah
• Automatic daily update of Maghreb Time (can be adjusted to add/subtract few minutes)
• Asr Calculation: Hanafi or Shafi (Select from App)
• Prayer Settings for any City/Town/Village in India and 1000s of Cities worldwide
• RTC (Real Time Clock) to maintain time when Device is turned Off
• Built on latest Internet of Things (IoT) technologies with the ability to integrate future enhancements & requirements
• Increase or Decrease LED Brightness from App

Input AC Voltage Range:Standard: 110 – 240VAC (85 ~ 264VAC)
Frequency: 47 ~ 63Hz
Over Voltage Protection
Protection type : Shut down o/p voltage, re-power on to recover

Devices Supported:Android & Windows Phone (Chrome & Firefox) iPhone – Tested on iPhone 7 with iOS 12 – Safari & Chrome Windows 7, 8 & 10 (Chrome, Firefox & Edge Browser), Not tested on Macbook\'s Safari Browser

Power Rating:50 W

In-built WiFi Hotspot:IEEE 802.11 b/g/n, 2.4Ghz

WiFi Password Protection:Yes

Brightness Control:Yes, adjustable from 0 to 100

Real Time Clock:Yes, with CMOS Battery to retain Time when power off

Buzzer:Yes

Software / Firmware (OTA) Updates:Yes, from Phone/PC

AC Outlet Plug Type:Indian, Type D

Taqweem / Prayer Calculation Method:University of Islamic Sciences, Karachi – Region Used – India, Pakistan, Afganistan, Bangladesh
Muslim World League – Region Used – Europe, Far East, parts of US
Islamic Society of North America – Region Used – North America (US and Canada)
Egyptian General Authority of Survey – Region Used – Africa, Syria, Lebanon, Malaysia
Umm al-Qura University, Makkah – Region Used – Arabian Peninsula
University of Islamic Sciences, Karachi – Region Used – India, Pakistan, Afganistan, Bangladesh
Shia Ithna Ashari, Leva Research Institute, Qum – Region Used – Some Shia communities worldwide

Asr Calculation - Juristic Method:Standard (Hanbali, Maliki, Shafi), Hanafi

Daylight Saving Time:Manual

Hijri Calendar:No

Daily/Weekend Alarms:No

Indoor/Outdoor:Indoor/Outdoor use

Rainproof:No

Cabinet Body:Plastic, Black Color

Warranty:1 Year

Product Dimensions: 97cm x 17cm x 6cm (Length x Height x Width)

Other Important Notes:

• All care has been taken for on screen color resemblance of the product, however 5% - 10% variation may be accepted as different monitor capabilities and Photography effects
• Product has Color variations and can be either Green LED Color or Red
• Processing duration : It will take 1 - 2 days to process and then dispatch will happen.
• This product is available within India only.
• This particular product wont be shipped out of India and orders for this wont be accepted.
